Drainage Geocomposites

Drainage geocomposites are rapidly replacing gravel drainage layers in containment facilities. These relatively thin materials are required to provide similar or better performance than thick mineral layers. Comprehensive testing is carried out to prove their equivalence to thick gravel drainage layers.

TRI’s Geocomposite Testing Capabilities Include

Physical

  • Thickness @ 2, 20 & 200kPa – ASTM D5199 & AS3706.1

  • Carbon Content – ASTM D4218

  • Density – ASTM D1505 & ASTM D792

Tensile

  • Wide Width Tensile Strength – ASTM D4595 & AS3706.2a

  • Strip Tensile Strength – ASTM D7179

  • Peel Strength – ASTM D7005

Compressive

  • CBR Burst Strength – ASTM D6241

  • Compressive Properties – ASTM D1621

  • Compressive Behavior – ASTM D6364

Hydraulic

  • In Plane flow – ASTM D4716

Durability

  • Oxidative Induction Time (OIT) – ASTM D3895 & ASTM D8117

  • High Pressure Oxidative Induction Time (HPOIT) – ASTM D5397

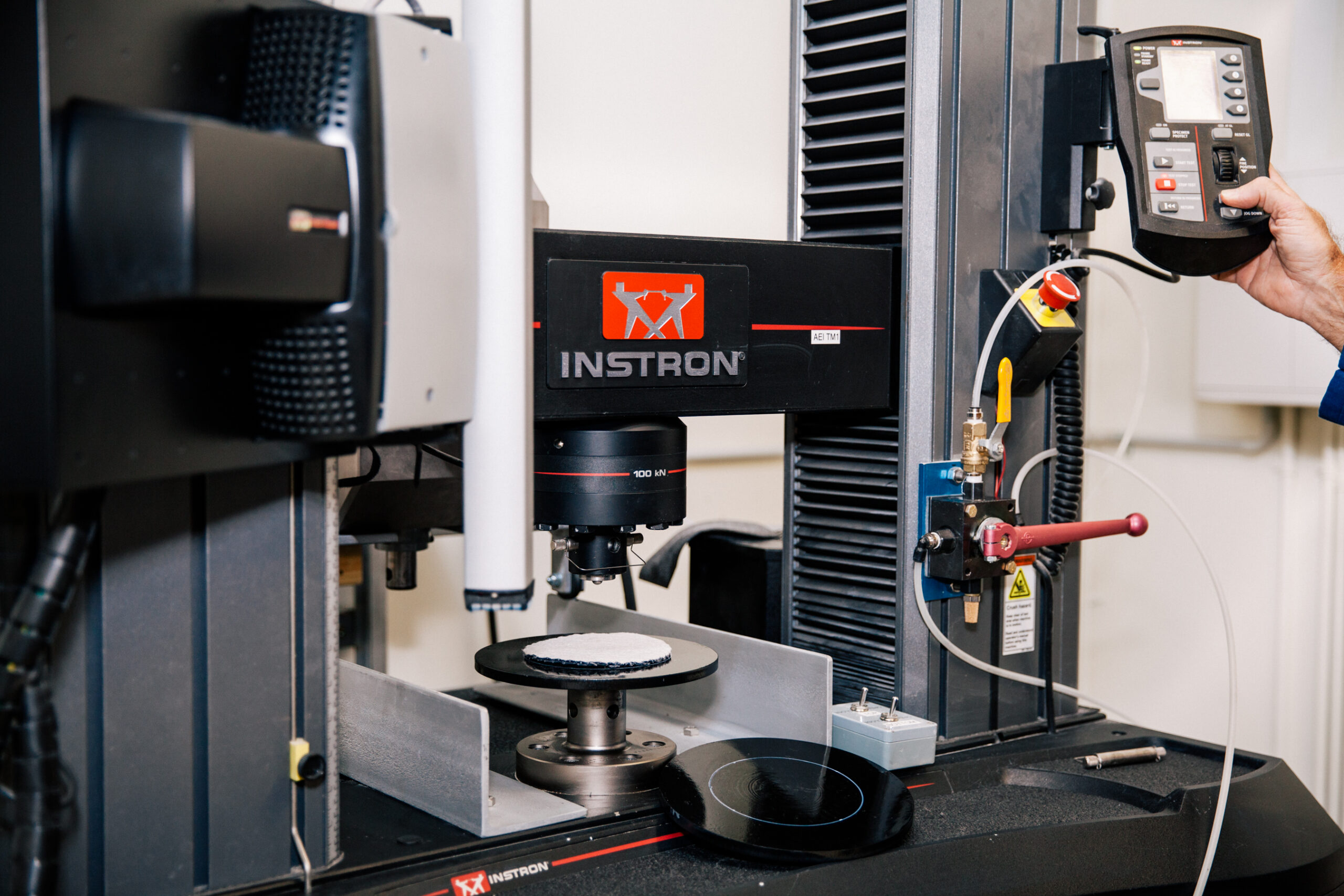

Comp 1

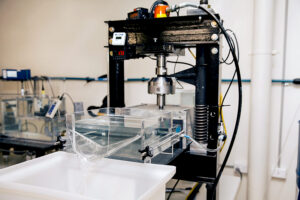

drainage

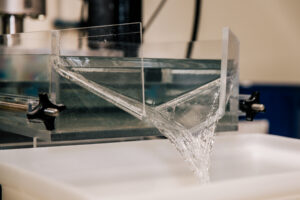

Trans 2

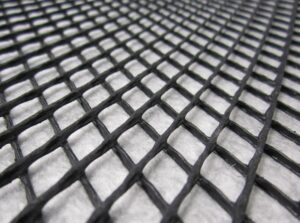

Bi ax

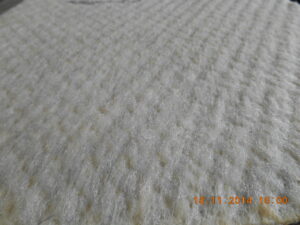

GCL Intrusion into GC -2

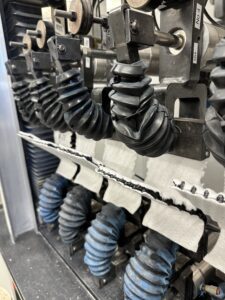

IMG_3790
